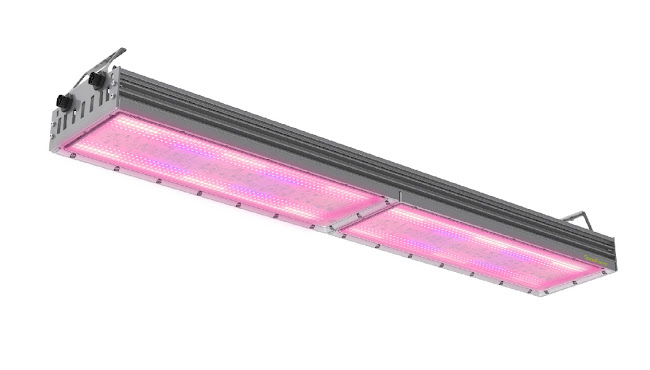

SFG-HP400-D / SFG-HP360-3D

 Technical Specifications

Model
Input voltage
Dimensins
Weight
Beam Angle
 Luminous Flux
Driver
IP Rating
 SFG-HP400-D
220V
1042 x 186 x 149mm
10.5kg
 120 ̊
49,600lm
All-in-one
IP66
 SFG-HP360-3D
220V
1042 x 186 x 149mm
7.8kg
 120 ̊
43,200lm
-IP66

Spectral version
 Deep Red/ White types
  Deep Red/ Blue/ White types
Model
SFG-HP400-D
SFG-HP360-3D
 Tyrical photon flux (PPF)
1560μmol/s
1440μmol/s
Energy Efficacy
124lm/w
120lm/w
Power consumption (max)
400W
360W
Efficacy
 >2.0μmol/J
 >2.0μmol/J
Dimmable
10~100%
10~100% (3Ch )
Product spectrum

Full spectrum with blue peak.
Contains wavelengths between 400-700nm. Slightly enhance energy at 660nm, 450nm
스킬

 *Customizable for each crop
Accessories
'U' Suspension Bracket
 3.0T A.L / 300mm
 'Y' Suspension Bracket
 Ø2.5mm S.S304
material Chain /1,000mm
 'W' Suspension Bracket
 Ø4mm S.S304 material /300mm
Open power cord
4C Cable
Signal cordt
4C Cable
junction box
450V / 24A AC / 0.5~2.5mm / IP66
Signal cordt
4C Cable
 'W' Suspension Bracket
 Ø4mm S.S304
material /300mm
pipe connector
 3.0T A.L / 300mm
junction box
450V / 24A AC / 0.5~2.5mm / IP66
